Instrument operation

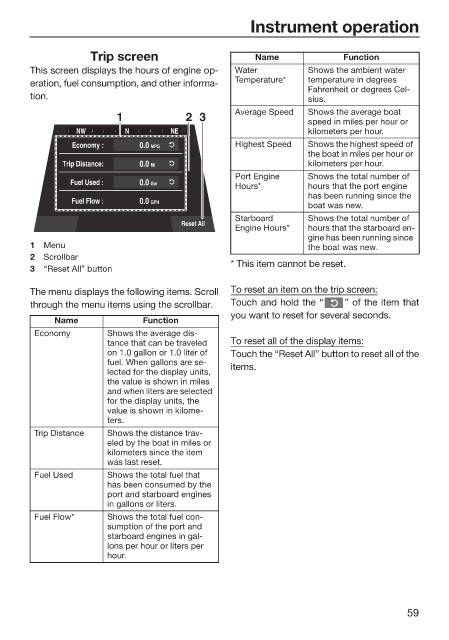

Trip screen Name Function
This screen displays the hours of engine op- Water Shows the ambient water
eration, fuel consumption, and other informa- Temperature* temperature in degrees
Fahrenheit or degrees Cel-
tion. sius.
Average Speed Shows the average boat
1 2 3 speed in miles per hour or
NW N NE kilometers per hour.
Economy : 0.0 MPG Highest Speed Shows the highest speed of
the boat in miles per hour or
Trip Distance: 0.0 Mi kilometers per hour.
Port Engine Shows the total number of
Fuel Used : 0.0 Gal Hours* hours that the port engine
has been running since the
Fuel Flow : 0.0 GPH
boat was new.
Starboard Shows the total number of
Reset All
Engine Hours* hours that the starboard en-
gine has been running since
1 Menu the boat was new.
2 Scrollbar
* This item cannot be reset.
3 “Reset All” button
The menu displays the following items. Scroll To reset an item on the trip screen:
through the menu items using the scrollbar. Touch and hold the “ ” of the item that
you want to reset for several seconds.
Name Function
Economy Shows the average dis-
tance that can be traveled To reset all of the display items:
on 1.0 gallon or 1.0 liter of Touch the “Reset All” button to reset all of the
fuel. When gallons are se-
lected for the display units, items.
the value is shown in miles
and when liters are selected
for the display units, the
value is shown in kilome-
ters.
Trip Distance Shows the distance trav-
eled by the boat in miles or
kilometers since the item
was last reset.
Fuel Used Shows the total fuel that
has been consumed by the
port and starboard engines
in gallons or liters.
Fuel Flow* Shows the total fuel con-
sumption of the port and
starboard engines in gal-
lons per hour or liters per
hour.

59
