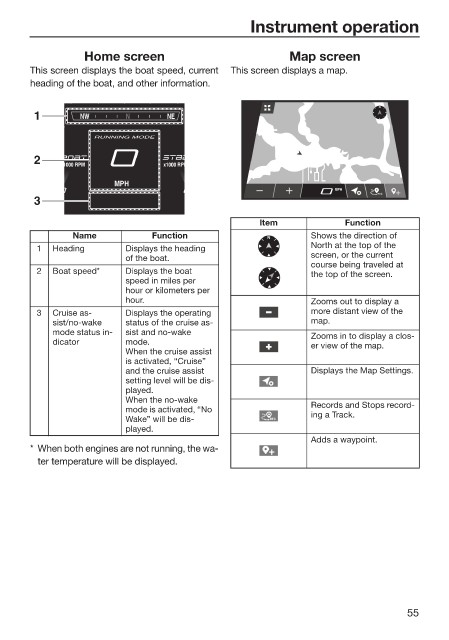

Instrument operation

Home screen Map screen
This screen displays the boat speed, current This screen displays a map.
heading of the boat, and other information.

1 NW N NE

RUNNING MODE
2

MPH
MPH
REC
3
Item Function
Name Function Shows the direction of
1 Heading Displays the heading North at the top of the
of the boat. screen, or the current
course being traveled at
2 Boat speed* Displays the boat the top of the screen.
speed in miles per
hour or kilometers per
hour. Zooms out to display a
3 Cruise as- Displays the operating more distant view of the
sist/no-wake status of the cruise as- map.
mode status in- sist and no-wake Zooms in to display a clos-
dicator mode. er view of the map.
When the cruise assist
is activated, “Cruise”
and the cruise assist Displays the Map Settings.
setting level will be dis-
played.
When the no-wake
mode is activated, “No Records and Stops record-
Wake” will be dis- REC ing a Track.
played.
Adds a waypoint.
* When both engines are not running, the wa-
ter temperature will be displayed.

55
