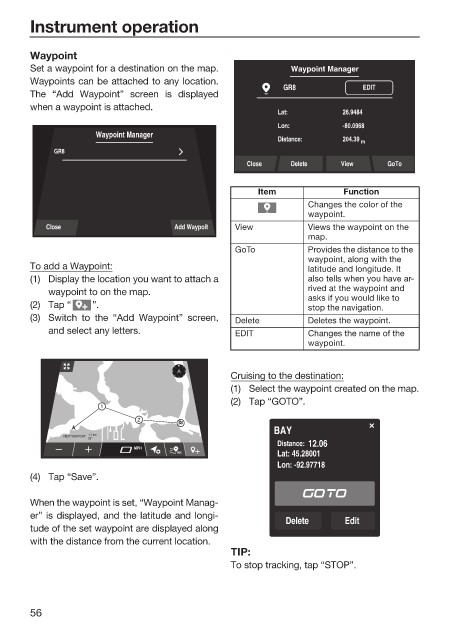

Page 64 - LIT-18626-12-95

Instrument operation

Waypoint
Set a waypoint for a destination on the map. Waypoint Manager
Waypoints can be attached to any location.
GR8 EDIT
The “Add Waypoint” screen is displayed
when a waypoint is attached.
Lat: 26.9484
Lon: -80.0968
Waypoint Manager
Distance: 204.39 m
GR8
Close Delete View GoTo

Item Function
Changes the color of the
waypoint.
Close Add Waypoit View Views the waypoint on the
map.
GoTo Provides the distance to the
waypoint, along with the
To add a Waypoint: latitude and longitude. It
(1) Display the location you want to attach a also tells when you have ar-
waypoint to on the map. rived at the waypoint and
asks if you would like to
(2) Tap “ ”. stop the navigation.
(3) Switch to the “Add Waypoint” screen, Delete Deletes the waypoint.
and select any letters. EDIT Changes the name of the
waypoint.

Cruising to the destination:
(1) Select the waypoint created on the map.
(2) Tap “GOTO”.
1
2
BAY
NEXT WAYPOINT 1.7 km
29°
Distance: 12.06
MPH
Lat: 45.28001
REC
Lon: -92.97718
(4) Tap “Save”.
When the waypoint is set, “Waypoint Manag-
er” is displayed, and the latitude and longi-
Delete Edit
tude of the set waypoint are displayed along
with the distance from the current location.
TIP:
To stop tracking, tap “STOP”.

56
