Instrument operation

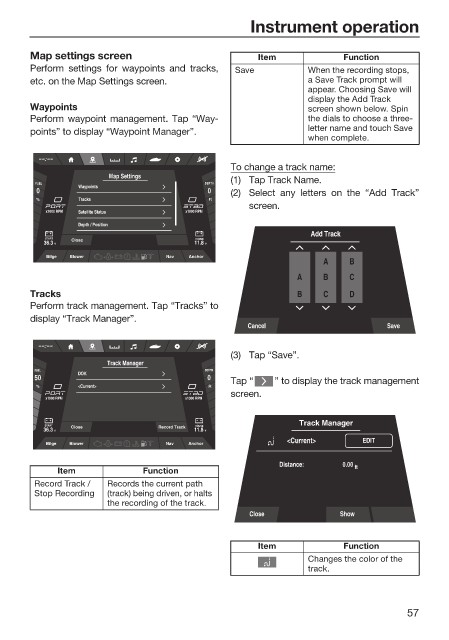

Map settings screen Item Function
Perform settings for waypoints and tracks, Save When the recording stops,
etc. on the Map Settings screen. a Save Track prompt will
appear. Choosing Save will
display the Add Track
Waypoints screen shown below. Spin
Perform waypoint management. Tap “Way- the dials to choose a three-
points” to display “Waypoint Manager”. letter name and touch Save
when complete.

To change a track name:
Map Settings
FUEL DEPTH (1) Tap Track Name.
Waypoints
0 0 (2) Select any letters on the “Add Track”
% Tracks Ft
screen.
x1000 RPM Satellite Status x1000 RPM
Depth / Position
Add Track
START HOUSE
36.3 V Close 11.8 V
Bilge Blower Nav Anchor
A B
A B C
Tracks B C D
Perform track management. Tap “Tracks” to
display “Track Manager”.
Cancel Save

(3) Tap “Save”.
Track Manager
FUEL DEPTH
DOK
50 0 Tap “ ” to display the track management
% <Current> Ft
screen.
x1000 RPM x1000 RPM
Track Manager
START HOUSE
36.3 V Close Record Track 11.8 V
<Current> EDIT
Bilge Blower Nav Anchor
Distance: 0.00 ft
Item Function
Record Track / Records the current path
Stop Recording (track) being driven, or halts
the recording of the track.
Close Show

Item Function
Changes the color of the
track.

57
