Page 204 - LIT-18626-12-95

Trouble recovery

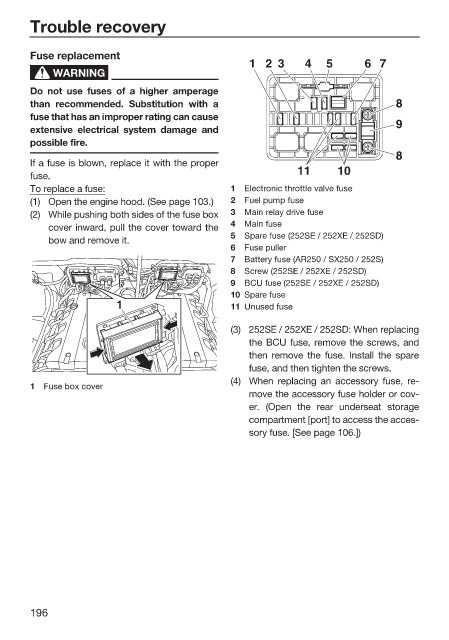

Fuse replacement
1 23 4 5 6 7
WARNING
Do not use fuses of a higher amperage
than recommended. Substitution with a 8
fuse that has an improper rating can cause 9
extensive electrical system damage and
possible fire.
8
If a fuse is blown, replace it with the proper
fuse. 11 10
To replace a fuse: 1 Electronic throttle valve fuse
(1) Open the engine hood. (See page 103.) 2 Fuel pump fuse
(2) While pushing both sides of the fuse box 3 Main relay drive fuse
cover inward, pull the cover toward the 4 Main fuse
5 Spare fuse (252SE / 252XE / 252SD)
bow and remove it.
6 Fuse puller
7 Battery fuse (AR250 / SX250 / 252S)
8 Screw (252SE / 252XE / 252SD)
9 BCU fuse (252SE / 252XE / 252SD)
10 Spare fuse
1 11 Unused fuse

(3) 252SE / 252XE / 252SD: When replacing
the BCU fuse, remove the screws, and
then remove the fuse. Install the spare
fuse, and then tighten the screws.
(4) When replacing an accessory fuse, re-
1 Fuse box cover
move the accessory fuse holder or cov-
er. (Open the rear underseat storage
compartment [port] to access the acces-
sory fuse. [See page 106.])

196
