Trouble recovery

1

1

3
2

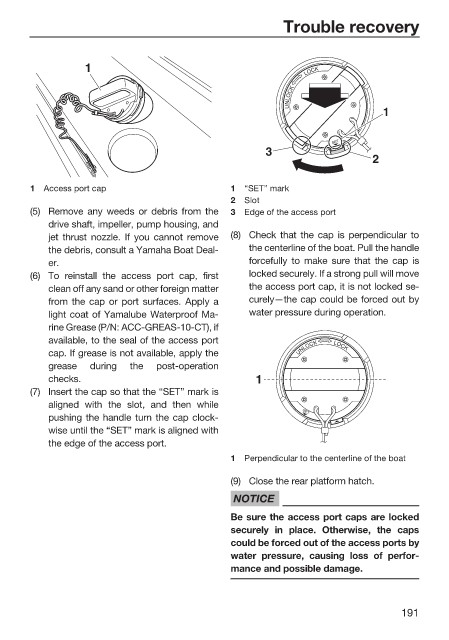

1 Access port cap 1 “SET” mark
2 Slot
(5) Remove any weeds or debris from the 3 Edge of the access port
drive shaft, impeller, pump housing, and
jet thrust nozzle. If you cannot remove (8) Check that the cap is perpendicular to
the debris, consult a Yamaha Boat Deal- the centerline of the boat. Pull the handle
er. forcefully to make sure that the cap is
(6) To reinstall the access port cap, first locked securely. If a strong pull will move
clean off any sand or other foreign matter the access port cap, it is not locked se-
from the cap or port surfaces. Apply a curely—the cap could be forced out by
light coat of Yamalube Waterproof Ma- water pressure during operation.
rine Grease (P/N: ACC-GREAS-10-CT), if
available, to the seal of the access port
cap. If grease is not available, apply the
grease during the post-operation
checks. 1
(7) Insert the cap so that the “SET” mark is
aligned with the slot, and then while
pushing the handle turn the cap clock-
wise until the “SET” mark is aligned with
the edge of the access port.
1 Perpendicular to the centerline of the boat

(9) Close the rear platform hatch.
NOTICE

Be sure the access port caps are locked
securely in place. Otherwise, the caps
could be forced out of the access ports by
water pressure, causing loss of perfor-
mance and possible damage.

191
