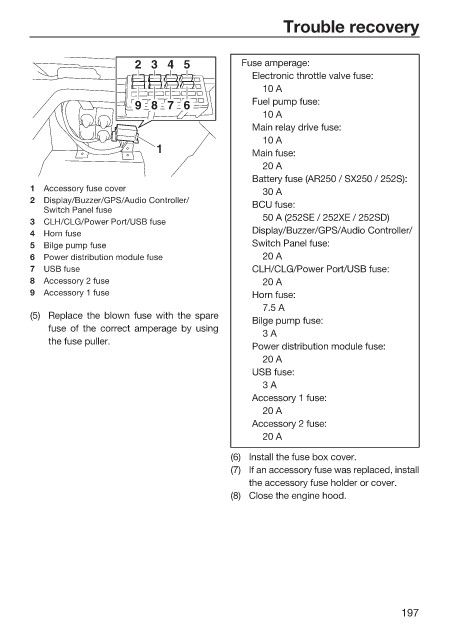

Trouble recovery

2 3 4 5 Fuse amperage:
Electronic throttle valve fuse:
10 A
9 8 7 6 Fuel pump fuse:
10 A
Main relay drive fuse:
10 A
1
Main fuse:
20 A
Battery fuse (AR250 / SX250 / 252S):
1 Accessory fuse cover
30 A
2 Display/Buzzer/GPS/Audio Controller/
Switch Panel fuse BCU fuse:
50 A (252SE / 252XE / 252SD)
3 CLH/CLG/Power Port/USB fuse
4 Horn fuse Display/Buzzer/GPS/Audio Controller/
5 Bilge pump fuse Switch Panel fuse:
6 Power distribution module fuse 20 A
7 USB fuse CLH/CLG/Power Port/USB fuse:
8 Accessory 2 fuse 20 A
9 Accessory 1 fuse Horn fuse:
7.5 A
(5) Replace the blown fuse with the spare
Bilge pump fuse:
fuse of the correct amperage by using
3 A
the fuse puller.
Power distribution module fuse:
20 A
USB fuse:
3 A
Accessory 1 fuse:
20 A
Accessory 2 fuse:
20 A

(6) Install the fuse box cover.
(7) If an accessory fuse was replaced, install
the accessory fuse holder or cover.
(8) Close the engine hood.

197
