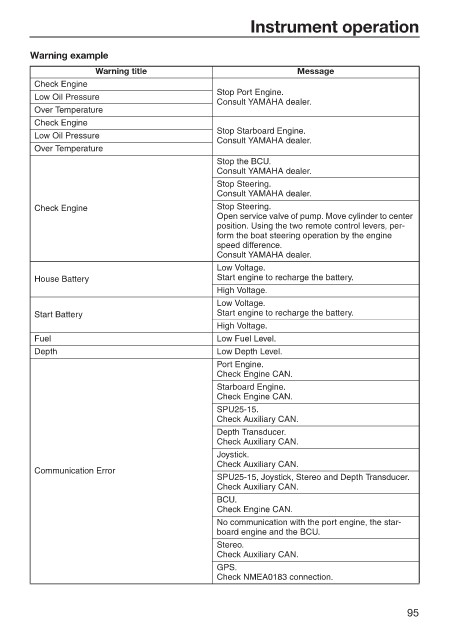

Instrument operation

Warning example
Warning title Message
Check Engine
Stop Port Engine.
Low Oil Pressure
Consult YAMAHA dealer.
Over Temperature
Check Engine
Stop Starboard Engine.
Low Oil Pressure
Consult YAMAHA dealer.
Over Temperature
Stop the BCU.
Consult YAMAHA dealer.
Stop Steering.
Consult YAMAHA dealer.
Check Engine Stop Steering.
Open service valve of pump. Move cylinder to center
position. Using the two remote control levers, per-
form the boat steering operation by the engine
speed difference.
Consult YAMAHA dealer.
Low Voltage.
House Battery Start engine to recharge the battery.
High Voltage.
Low Voltage.
Start Battery Start engine to recharge the battery.
High Voltage.
Fuel Low Fuel Level.
Depth Low Depth Level.
Port Engine.
Check Engine CAN.
Starboard Engine.
Check Engine CAN.
SPU25-15.
Check Auxiliary CAN.
Depth Transducer.
Check Auxiliary CAN.
Joystick.
Check Auxiliary CAN.
Communication Error
SPU25-15, Joystick, Stereo and Depth Transducer.
Check Auxiliary CAN.
BCU.
Check Engine CAN.
No communication with the port engine, the star-
board engine and the BCU.
Stereo.
Check Auxiliary CAN.
GPS.
Check NMEA0183 connection.

95
