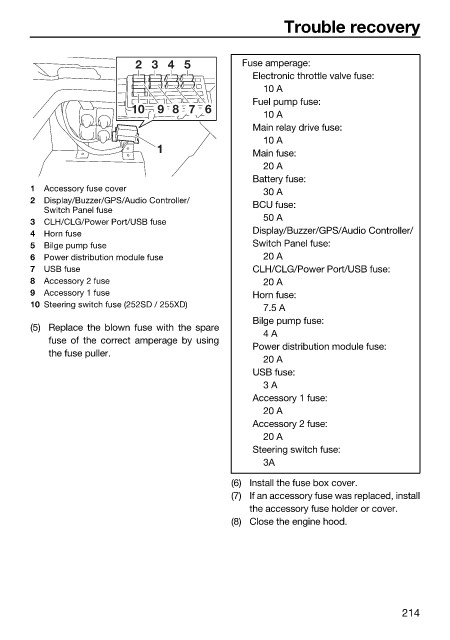

Trouble recovery

2 3 4 5 Fuse amperage:
Electronic throttle valve fuse:
10 A
Fuel pump fuse:
10 9 8 7 6
10 A
Main relay drive fuse:
10 A
1
Main fuse:
20 A
Battery fuse:
1 Accessory fuse cover
30 A
2 Display/Buzzer/GPS/Audio Controller/
Switch Panel fuse BCU fuse:
50 A
3 CLH/CLG/Power Port/USB fuse
4 Horn fuse Display/Buzzer/GPS/Audio Controller/
5 Bilge pump fuse Switch Panel fuse:
6 Power distribution module fuse 20 A
7 USB fuse CLH/CLG/Power Port/USB fuse:
8 Accessory 2 fuse 20 A
9 Accessory 1 fuse Horn fuse:
10 Steering switch fuse (252SD / 255XD)
7.5 A
Bilge pump fuse:
(5) Replace the blown fuse with the spare
4 A
fuse of the correct amperage by using
Power distribution module fuse:
the fuse puller.
20 A
USB fuse:
3 A
Accessory 1 fuse:
20 A
Accessory 2 fuse:
20 A
Steering switch fuse:
3A
(6) Install the fuse box cover.
(7) If an accessory fuse was replaced, install
the accessory fuse holder or cover.
(8) Close the engine hood.

214
