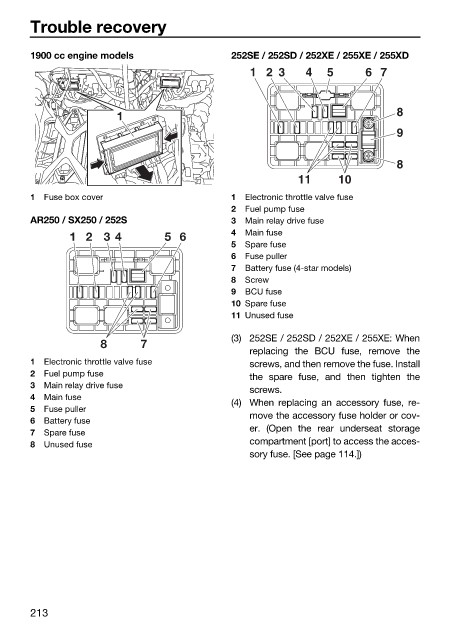

Trouble recovery

1900 cc engine models 252SE / 252SD / 252XE / 255XE / 255XD
1 23 4 5 6 7

1 8
9

8
11 10
1 Fuse box cover 1 Electronic throttle valve fuse
2 Fuel pump fuse
AR250 / SX250 / 252S 3 Main relay drive fuse
1 23 4 5 6 4 Main fuse
5 Spare fuse
6 Fuse puller
7 Battery fuse (4-star models)
8 Screw
9 BCU fuse
10 Spare fuse
11 Unused fuse
(3) 252SE / 252SD / 252XE / 255XE: When
8 7
replacing the BCU fuse, remove the
1 Electronic throttle valve fuse screws, and then remove the fuse. Install
2 Fuel pump fuse
the spare fuse, and then tighten the
3 Main relay drive fuse
screws.
4 Main fuse
(4) When replacing an accessory fuse, re-
5 Fuse puller
move the accessory fuse holder or cov-
6 Battery fuse
er. (Open the rear underseat storage
7 Spare fuse
compartment [port] to access the acces-
8 Unused fuse
sory fuse. [See page 114.])

213
