Equipment operation

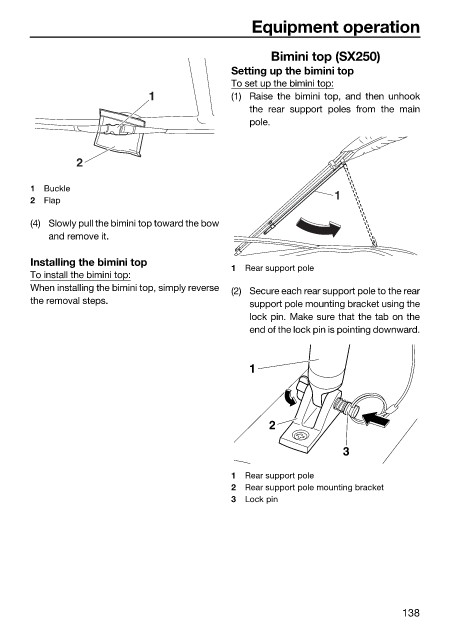

Bimini top (SX250)
Setting up the bimini top
To set up the bimini top:
1 (1) Raise the bimini top, and then unhook
the rear support poles from the main
pole.

2

1 Buckle
2 Flap 1

(4) Slowly pull the bimini top toward the bow
and remove it.

Installing the bimini top
1 Rear support pole
To install the bimini top:
When installing the bimini top, simply reverse (2) Secure each rear support pole to the rear
the removal steps. support pole mounting bracket using the
lock pin. Make sure that the tab on the
end of the lock pin is pointing downward.

1

2

3

1 Rear support pole
2 Rear support pole mounting bracket
3 Lock pin

138
