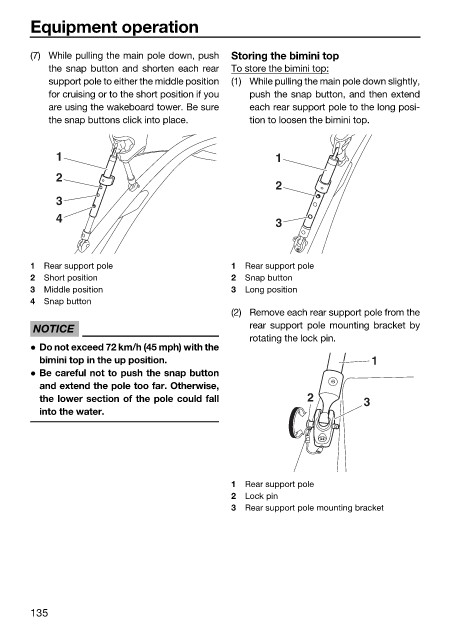

Equipment operation

(7) While pulling the main pole down, push Storing the bimini top
the snap button and shorten each rear To store the bimini top:
support pole to either the middle position (1) While pulling the main pole down slightly,
for cruising or to the short position if you push the snap button, and then extend
are using the wakeboard tower. Be sure each rear support pole to the long posi-
the snap buttons click into place. tion to loosen the bimini top.

1 1

2
2
3
4 3

1 Rear support pole 1 Rear support pole
2 Short position 2 Snap button
3 Middle position 3 Long position
4 Snap button
(2) Remove each rear support pole from the
NOTICE rear support pole mounting bracket by
rotating the lock pin.
 Do not exceed 72 km/h (45 mph) with the
bimini top in the up position. 1
 Be careful not to push the snap button
and extend the pole too far. Otherwise,
the lower section of the pole could fall 2 3
into the water.

1 Rear support pole
2 Lock pin
3 Rear support pole mounting bracket

135
