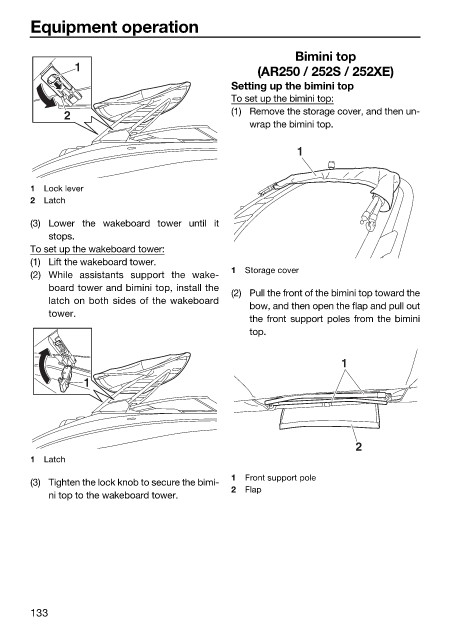

Equipment operation

Bimini top
1
(AR250 / 252S / 252XE)
Setting up the bimini top
To set up the bimini top:
2 (1) Remove the storage cover, and then un-
wrap the bimini top.

1

1 Lock lever
2 Latch

(3) Lower the wakeboard tower until it
stops.
To set up the wakeboard tower:
(1) Lift the wakeboard tower.
1 Storage cover
(2) While assistants support the wake-
board tower and bimini top, install the
(2) Pull the front of the bimini top toward the
latch on both sides of the wakeboard
bow, and then open the flap and pull out
tower.
the front support poles from the bimini
top.

1
1

2
1 Latch

1 Front support pole
(3) Tighten the lock knob to secure the bimi-
2 Flap
ni top to the wakeboard tower.

133
