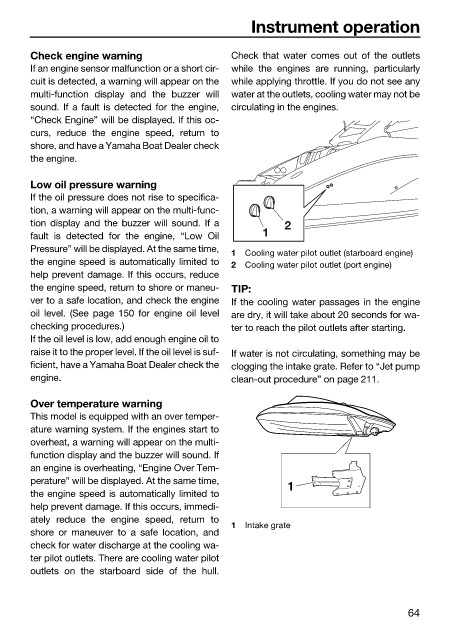

Instrument operation

Check engine warning Check that water comes out of the outlets
If an engine sensor malfunction or a short cir- while the engines are running, particularly
cuit is detected, a warning will appear on the while applying throttle. If you do not see any
multi-function display and the buzzer will water at the outlets, cooling water may not be
sound. If a fault is detected for the engine, circulating in the engines.
“Check Engine” will be displayed. If this oc-
curs, reduce the engine speed, return to
shore, and have a Yamaha Boat Dealer check
the engine.

Low oil pressure warning
If the oil pressure does not rise to specifica-
tion, a warning will appear on the multi-func-
tion display and the buzzer will sound. If a 2
fault is detected for the engine, “Low Oil 1
Pressure” will be displayed. At the same time, 1 Cooling water pilot outlet (starboard engine)
the engine speed is automatically limited to 2 Cooling water pilot outlet (port engine)
help prevent damage. If this occurs, reduce
the engine speed, return to shore or maneu- TIP:
ver to a safe location, and check the engine If the cooling water passages in the engine
oil level. (See page 150 for engine oil level are dry, it will take about 20 seconds for wa-
checking procedures.) ter to reach the pilot outlets after starting.
If the oil level is low, add enough engine oil to
raise it to the proper level. If the oil level is suf- If water is not circulating, something may be
ficient, have a Yamaha Boat Dealer check the clogging the intake grate. Refer to “Jet pump
engine. clean-out procedure” on page 211.

Over temperature warning
This model is equipped with an over temper-
ature warning system. If the engines start to
overheat, a warning will appear on the multi-
function display and the buzzer will sound. If
an engine is overheating, “Engine Over Tem-
perature” will be displayed. At the same time,
1
the engine speed is automatically limited to
help prevent damage. If this occurs, immedi-
ately reduce the engine speed, return to
1 Intake grate
shore or maneuver to a safe location, and
check for water discharge at the cooling wa-
ter pilot outlets. There are cooling water pilot
outlets on the starboard side of the hull.

64
