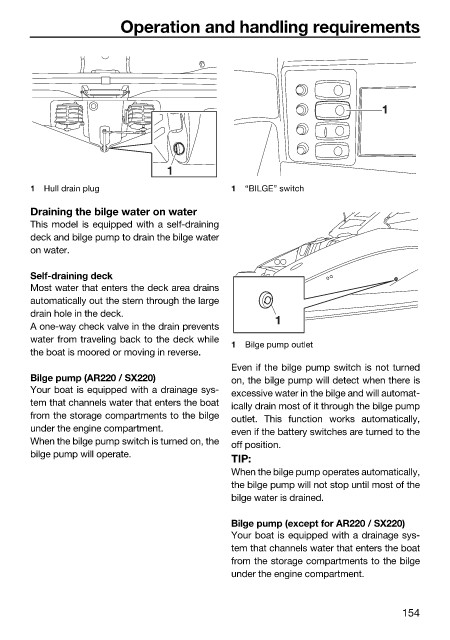

Operation and handling requirements

1

1
1 Hull drain plug 1 “BILGE” switch

Draining the bilge water on water
This model is equipped with a self-draining
deck and bilge pump to drain the bilge water
on water.

Self-draining deck
Most water that enters the deck area drains
automatically out the stern through the large
drain hole in the deck. 1
A one-way check valve in the drain prevents
water from traveling back to the deck while
1 Bilge pump outlet
the boat is moored or moving in reverse.
Even if the bilge pump switch is not turned
Bilge pump (AR220 / SX220) on, the bilge pump will detect when there is
Your boat is equipped with a drainage sys- excessive water in the bilge and will automat-
tem that channels water that enters the boat ically drain most of it through the bilge pump
from the storage compartments to the bilge outlet. This function works automatically,
under the engine compartment. even if the battery switches are turned to the
When the bilge pump switch is turned on, the off position.
bilge pump will operate.
TIP:
When the bilge pump operates automatically,
the bilge pump will not stop until most of the
bilge water is drained.

Bilge pump (except for AR220 / SX220)
Your boat is equipped with a drainage sys-
tem that channels water that enters the boat
from the storage compartments to the bilge
under the engine compartment.
