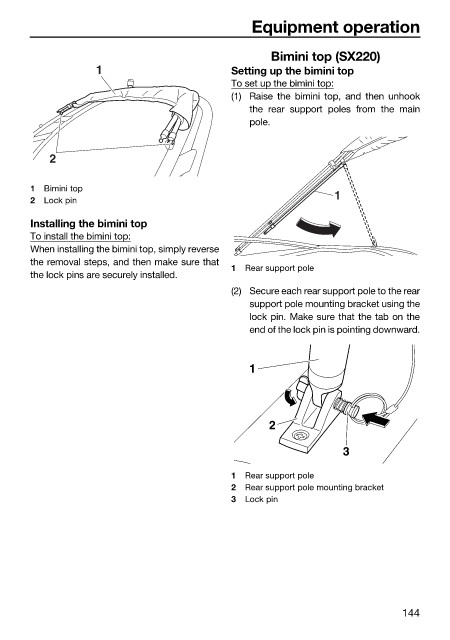

Equipment operation

Bimini top (SX220)
1 Setting up the bimini top
To set up the bimini top:
(1) Raise the bimini top, and then unhook
the rear support poles from the main
pole.

2

1 Bimini top
2 Lock pin 1

Installing the bimini top
To install the bimini top:
When installing the bimini top, simply reverse
the removal steps, and then make sure that
1 Rear support pole
the lock pins are securely installed.
(2) Secure each rear support pole to the rear
support pole mounting bracket using the
lock pin. Make sure that the tab on the
end of the lock pin is pointing downward.

1

2

3

1 Rear support pole
2 Rear support pole mounting bracket
3 Lock pin
