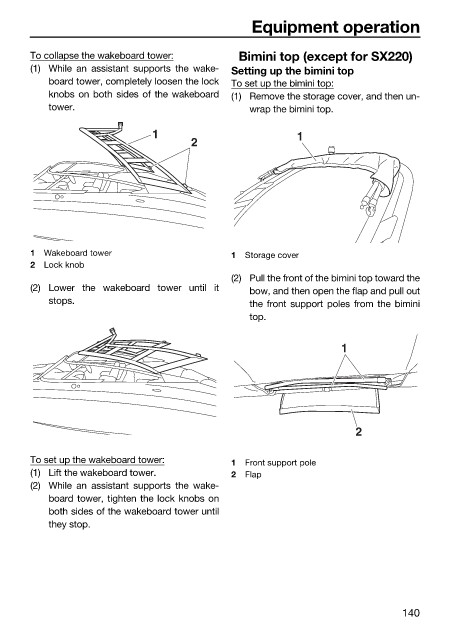

Equipment operation

To collapse the wakeboard tower: Bimini top (except for SX220)
(1) While an assistant supports the wake- Setting up the bimini top
board tower, completely loosen the lock To set up the bimini top:
knobs on both sides of the wakeboard (1) Remove the storage cover, and then un-
tower. wrap the bimini top.

1 1
2

1 Wakeboard tower 1 Storage cover
2 Lock knob
(2) Pull the front of the bimini top toward the
(2) Lower the wakeboard tower until it bow, and then open the flap and pull out
stops. the front support poles from the bimini
top.

1

2

To set up the wakeboard tower: 1 Front support pole
(1) Lift the wakeboard tower. 2 Flap
(2) While an assistant supports the wake-
board tower, tighten the lock knobs on
both sides of the wakeboard tower until
they stop.

140
