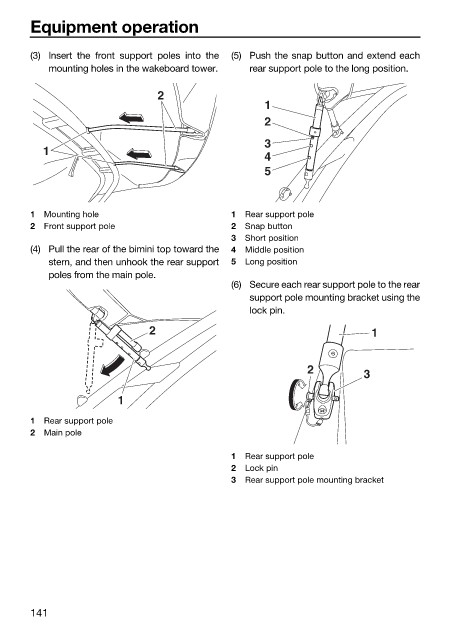

Equipment operation

(3) Insert the front support poles into the (5) Push the snap button and extend each
mounting holes in the wakeboard tower. rear support pole to the long position.

2
1
2

3
1
4
5

1 Mounting hole 1 Rear support pole
2 Front support pole 2 Snap button
3 Short position
(4) Pull the rear of the bimini top toward the 4 Middle position
stern, and then unhook the rear support 5 Long position
poles from the main pole.
(6) Secure each rear support pole to the rear
support pole mounting bracket using the
lock pin.
2 1

2 3

1

1 Rear support pole
2 Main pole

1 Rear support pole
2 Lock pin
3 Rear support pole mounting bracket

141
