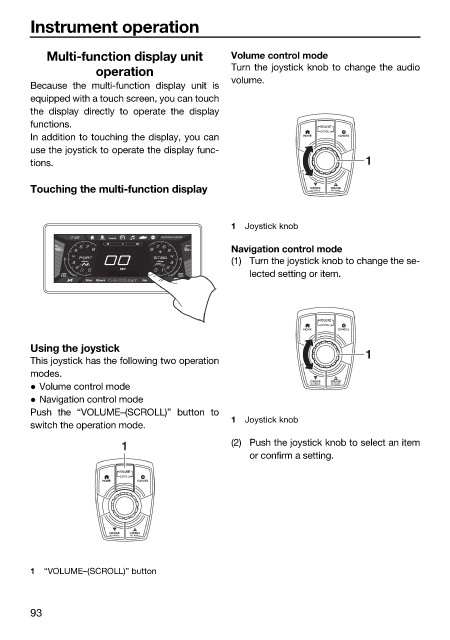

Instrument operation

Multi-function display unit Volume control mode
operation Turn the joystick knob to change the audio
volume.
Because the multi-function display unit is
equipped with a touch screen, you can touch
the display directly to operate the display
functions. VOLUME
(SCROLL)
In addition to touching the display, you can HOME CANCEL
use the joystick to operate the display func-
tions. 1

Touching the multi-function display CRUISE CRUISE
NO WAKE
NO WAKE
1 Joystick knob
RUNNING MODE
SE S SW
FUEL DEPTH
100 % .8 9 ft Navigation control mode
19 19
x1000 rpm x1000 rpm (1) Turn the joystick knob to change the se-
MPH
START HOUSE lected setting or item.
13.0 V 9 9 13.0 V
Bilge Blower Nav Anchor
VOLUME
(SCROLL)
HOME CANCEL
Using the joystick 1
This joystick has the following two operation
modes.
CRUISE CRUISE
 Volume control mode
NO WAKE
NO WAKE
 Navigation control mode
Push the “VOLUME–(SCROLL)” button to
1 Joystick knob
switch the operation mode.
1 (2) Push the joystick knob to select an item
or confirm a setting.
VOLUME
(SCROLL)
HOME CANCEL

CRUISE CRUISE
NO WAKE NO WAKE

1 “VOLUME–(SCROLL)” button

93
