Instrument operation

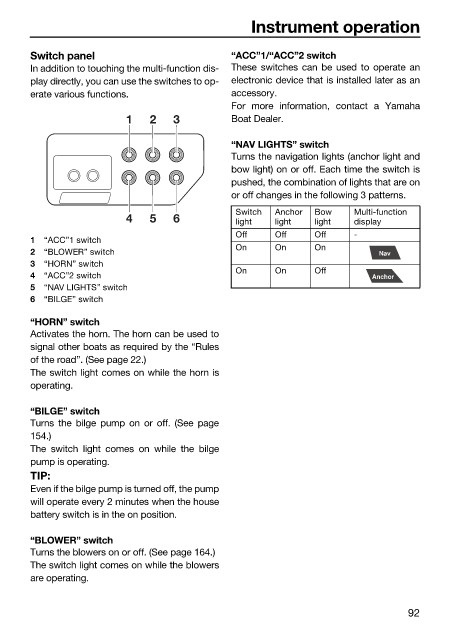

Switch panel “ACC”1/“ACC”2 switch
In addition to touching the multi-function dis- These switches can be used to operate an
play directly, you can use the switches to op- electronic device that is installed later as an
erate various functions. accessory.
For more information, contact a Yamaha
1 2 3 Boat Dealer.

“NAV LIGHTS” switch
Turns the navigation lights (anchor light and
bow light) on or off. Each time the switch is
pushed, the combination of lights that are on
or off changes in the following 3 patterns.
Switch Anchor Bow Multi-function
4 5 6 light light light display
Off Off Off -
1 “ACC”1 switch
On On On
2 “BLOWER” switch Nav
3 “HORN” switch
On On Off
4 “ACC”2 switch Anchor
5 “NAV LIGHTS” switch
6 “BILGE” switch
“HORN” switch
Activates the horn. The horn can be used to
signal other boats as required by the “Rules
of the road”. (See page 22.)
The switch light comes on while the horn is
operating.

“BILGE” switch
Turns the bilge pump on or off. (See page
154.)
The switch light comes on while the bilge
pump is operating.
TIP:
Even if the bilge pump is turned off, the pump
will operate every 2 minutes when the house
battery switch is in the on position.

“BLOWER” switch
Turns the blowers on or off. (See page 164.)
The switch light comes on while the blowers
are operating.

92
