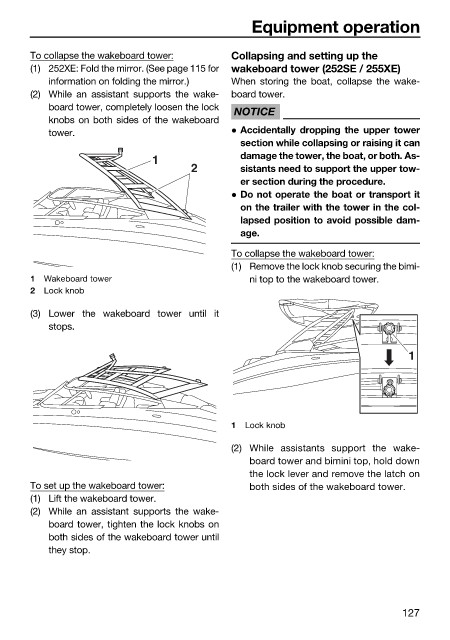

Equipment operation

To collapse the wakeboard tower: Collapsing and setting up the
(1) 252XE: Fold the mirror. (See page 115 for wakeboard tower (252SE / 255XE)
information on folding the mirror.) When storing the boat, collapse the wake-
(2) While an assistant supports the wake- board tower.
board tower, completely loosen the lock NOTICE
knobs on both sides of the wakeboard
tower.  Accidentally dropping the upper tower
section while collapsing or raising it can
damage the tower, the boat, or both. As-
1
2 sistants need to support the upper tow-
er section during the procedure.
 Do not operate the boat or transport it
on the trailer with the tower in the col-
lapsed position to avoid possible dam-
age.
To collapse the wakeboard tower:
(1) Remove the lock knob securing the bimi-
1 Wakeboard tower ni top to the wakeboard tower.
2 Lock knob
(3) Lower the wakeboard tower until it
stops.

1

1 Lock knob

(2) While assistants support the wake-
board tower and bimini top, hold down
the lock lever and remove the latch on
To set up the wakeboard tower: both sides of the wakeboard tower.
(1) Lift the wakeboard tower.
(2) While an assistant supports the wake-
board tower, tighten the lock knobs on
both sides of the wakeboard tower until
they stop.

127
