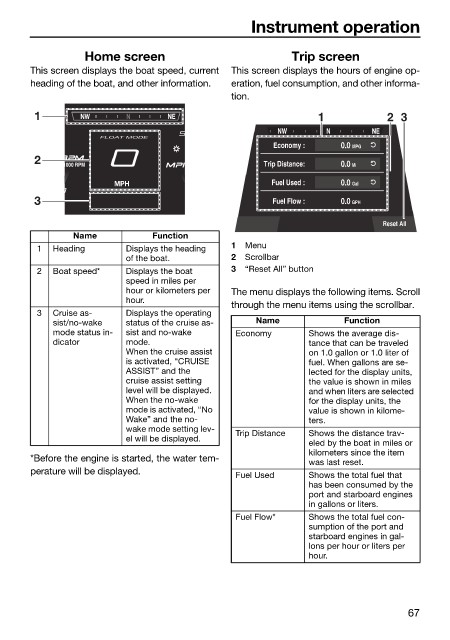

Instrument operation

Home screen Trip screen
This screen displays the boat speed, current This screen displays the hours of engine op-
heading of the boat, and other information. eration, fuel consumption, and other informa-
tion.
1 NW N NE 1 2 3
NW N NE
FLOAT MODE
Economy : 0.0 MPG
2 Trip Distance: 0.0 Mi
MPH Fuel Used : 0.0 Gal
3 Fuel Flow : 0.0 GPH

Reset All
Name Function
1 Heading Displays the heading 1 Menu
of the boat. 2 Scrollbar
2 Boat speed* Displays the boat 3 “Reset All” button
speed in miles per
hour or kilometers per The menu displays the following items. Scroll
hour.
through the menu items using the scrollbar.
3 Cruise as- Displays the operating
sist/no-wake status of the cruise as- Name Function
mode status in- sist and no-wake Economy Shows the average dis-
dicator mode. tance that can be traveled
When the cruise assist on 1.0 gallon or 1.0 liter of
is activated, “CRUISE fuel. When gallons are se-
ASSIST” and the lected for the display units,
cruise assist setting the value is shown in miles
level will be displayed. and when liters are selected
When the no-wake for the display units, the
mode is activated, “No value is shown in kilome-
Wake” and the no- ters.
wake mode setting lev- Trip Distance Shows the distance trav-
el will be displayed.
eled by the boat in miles or
kilometers since the item
*Before the engine is started, the water tem- was last reset.
perature will be displayed. Fuel Used Shows the total fuel that
has been consumed by the
port and starboard engines
in gallons or liters.
Fuel Flow* Shows the total fuel con-
sumption of the port and
starboard engines in gal-
lons per hour or liters per
hour.

67
