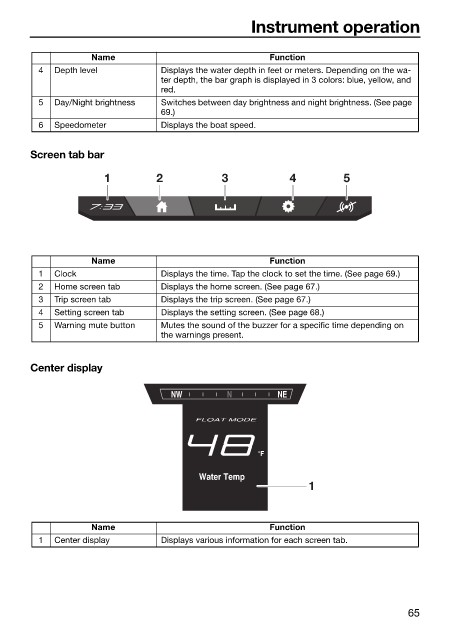

Instrument operation

Name Function
4 Depth level Displays the water depth in feet or meters. Depending on the wa-
ter depth, the bar graph is displayed in 3 colors: blue, yellow, and
red.
5 Day/Night brightness Switches between day brightness and night brightness. (See page
69.)
6 Speedometer Displays the boat speed.

Screen tab bar

1 2 3 4 5

Name Function
1 Clock Displays the time. Tap the clock to set the time. (See page 69.)
2 Home screen tab Displays the home screen. (See page 67.)
3 Trip screen tab Displays the trip screen. (See page 67.)
4 Setting screen tab Displays the setting screen. (See page 68.)
5 Warning mute button Mutes the sound of the buzzer for a specific time depending on
the warnings present.

Center display

NW N NE

FLOAT MODE

°F
Water Temp
1

Name Function
1 Center display Displays various information for each screen tab.
