Instrument operation

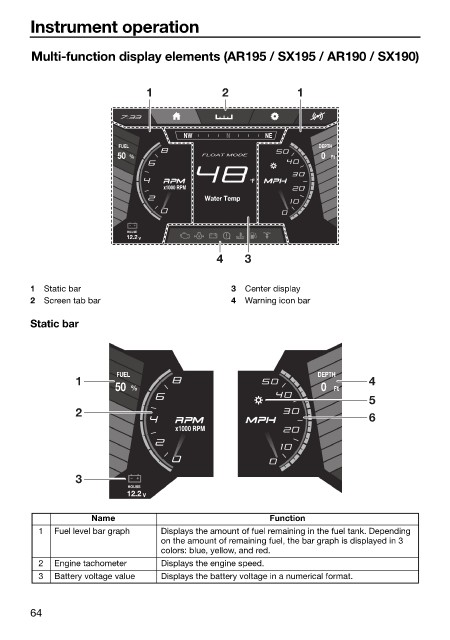

Multi-function display elements (AR195 / SX195 / AR190 / SX190)

1 2 1

NW N NE
FUEL DEPTH
50 % FLOAT MODE 0 Ft

°F
Water Temp

HOUSE
12.2 V
4 3

1 Static bar 3 Center display
2 Screen tab bar 4 Warning icon bar

Static bar

NW NE
FUEL DEPTH
1 4
50 % 0 Ft
5
2
6

3
HOUSE
12.2 V
Name Function
1 Fuel level bar graph Displays the amount of fuel remaining in the fuel tank. Depending
on the amount of remaining fuel, the bar graph is displayed in 3
colors: blue, yellow, and red.
2 Engine tachometer Displays the engine speed.
3 Battery voltage value Displays the battery voltage in a numerical format.

64
