Description

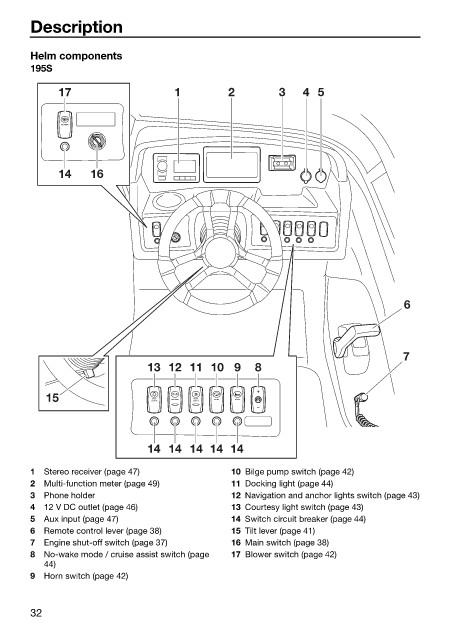

Helm components
195S

17 1 2 3 4 5

BLOWER

14 16

6

7
13 12 11 10 9 8

15 LIGHTS CTSY NAV/ANC DOCK BILGE HORN
LIGHTS

14 14 14 14 14

1 Stereo receiver (page 47) 10 Bilge pump switch (page 42)
2 Multi-function meter (page 49) 11 Docking light (page 44)
3 Phone holder 12 Navigation and anchor lights switch (page 43)
4 12 V DC outlet (page 46) 13 Courtesy light switch (page 43)
5 Aux input (page 47) 14 Switch circuit breaker (page 44)
6 Remote control lever (page 38) 15 Tilt lever (page 41)
7 Engine shut-off switch (page 37) 16 Main switch (page 38)
8 No-wake mode / cruise assist switch (page 17 Blower switch (page 42)
44)
9 Horn switch (page 42)
