Instrument operation

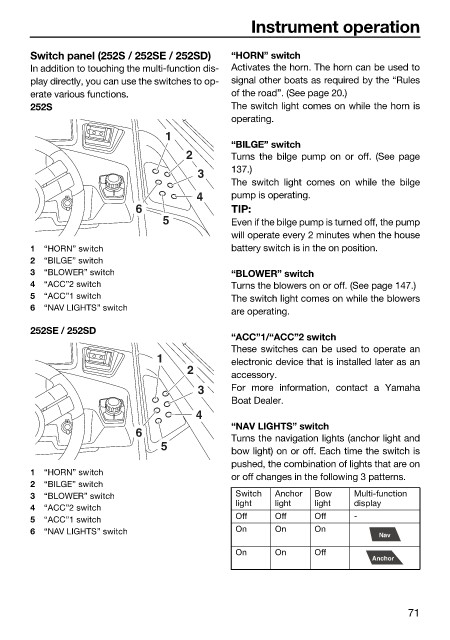

Switch panel (252S / 252SE / 252SD) “HORN” switch
In addition to touching the multi-function dis- Activates the horn. The horn can be used to
play directly, you can use the switches to op- signal other boats as required by the “Rules
erate various functions. of the road”. (See page 20.)
252S The switch light comes on while the horn is
operating.
1
“BILGE” switch
2 Turns the bilge pump on or off. (See page
3 137.)
The switch light comes on while the bilge
4 pump is operating.
6 TIP:
5 Even if the bilge pump is turned off, the pump
will operate every 2 minutes when the house
1 “HORN” switch battery switch is in the on position.
2 “BILGE” switch
3 “BLOWER” switch “BLOWER” switch
4 “ACC”2 switch Turns the blowers on or off. (See page 147.)
5 “ACC”1 switch The switch light comes on while the blowers
6 “NAV LIGHTS” switch
are operating.
252SE / 252SD
“ACC”1/“ACC”2 switch
These switches can be used to operate an
1 electronic device that is installed later as an
2
accessory.
3 For more information, contact a Yamaha
Boat Dealer.
4
“NAV LIGHTS” switch
6
Turns the navigation lights (anchor light and
5
bow light) on or off. Each time the switch is
pushed, the combination of lights that are on
1 “HORN” switch
or off changes in the following 3 patterns.
2 “BILGE” switch
3 “BLOWER” switch Switch Anchor Bow Multi-function
light light light display
4 “ACC”2 switch
Off Off Off -
5 “ACC”1 switch
6 “NAV LIGHTS” switch On On On
Nav
On On Off
Anchor
