Instrument operation
Helm controls (252S / 252SE / 252XE / 252SD)
1
2 3
252S 252SE/252SD
4 5
4
5 6
6
7
7
9 9
8 8
10
11
5V
12

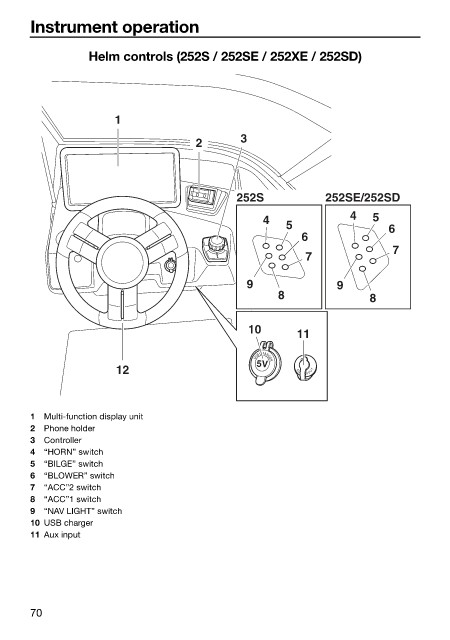

1 Multi-function display unit
2 Phone holder
3 Controller
4 “HORN” switch
5 “BILGE” switch
6 “BLOWER” switch
7 “ACC”2 switch
8 “ACC”1 switch
9 “NAV LIGHT” switch
10 USB charger
11 Aux input
