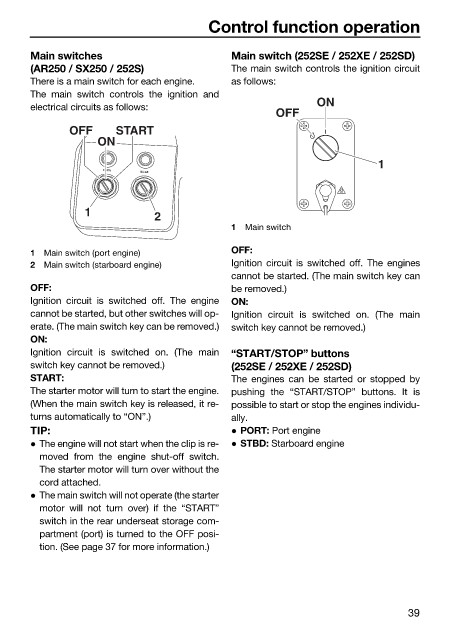

Control function operation

Main switches Main switch (252SE / 252XE / 252SD)
(AR250 / SX250 / 252S) The main switch controls the ignition circuit
There is a main switch for each engine. as follows:
The main switch controls the ignition and
electrical circuits as follows: ON
OFF
OFF START
ON

1
HORN
BILGE

1 2
1 Main switch

1 Main switch (port engine) OFF:
2 Main switch (starboard engine) Ignition circuit is switched off. The engines
cannot be started. (The main switch key can
OFF: be removed.)
Ignition circuit is switched off. The engine ON:
cannot be started, but other switches will op- Ignition circuit is switched on. (The main
erate. (The main switch key can be removed.) switch key cannot be removed.)
ON:
Ignition circuit is switched on. (The main “START/STOP” buttons
switch key cannot be removed.) (252SE / 252XE / 252SD)
START: The engines can be started or stopped by
The starter motor will turn to start the engine. pushing the “START/STOP” buttons. It is
(When the main switch key is released, it re- possible to start or stop the engines individu-
turns automatically to “ON”.) ally.
TIP:  PORT: Port engine
 The engine will not start when the clip is re-  STBD: Starboard engine
moved from the engine shut-off switch.
The starter motor will turn over without the
cord attached.
 The main switch will not operate (the starter
motor will not turn over) if the “START”
switch in the rear underseat storage com-
partment (port) is turned to the OFF posi-
tion. (See page 37 for more information.)

39
