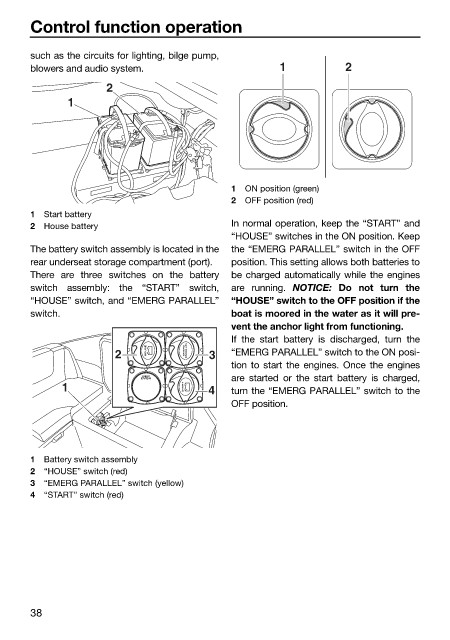

Control function operation

such as the circuits for lighting, bilge pump,
blowers and audio system. 1 2
2
1

1 ON position (green)
2 OFF position (red)
1 Start battery
2 House battery In normal operation, keep the “START” and
“HOUSE” switches in the ON position. Keep
The battery switch assembly is located in the the “EMERG PARALLEL” switch in the OFF
rear underseat storage compartment (port). position. This setting allows both batteries to
There are three switches on the battery be charged automatically while the engines
switch assembly: the “START” switch, are running. NOTICE: Do not turn the
“HOUSE” switch, and “EMERG PARALLEL” “HOUSE” switch to the OFF position if the
switch. boat is moored in the water as it will pre-
vent the anchor light from functioning.
If the start battery is discharged, turn the
2 3 “EMERG PARALLEL” switch to the ON posi-
tion to start the engines. Once the engines
are started or the start battery is charged,
1 4 turn the “EMERG PARALLEL” switch to the
OFF position.

1 Battery switch assembly
2 “HOUSE” switch (red)
3 “EMERG PARALLEL” switch (yellow)
4 “START” switch (red)

38
