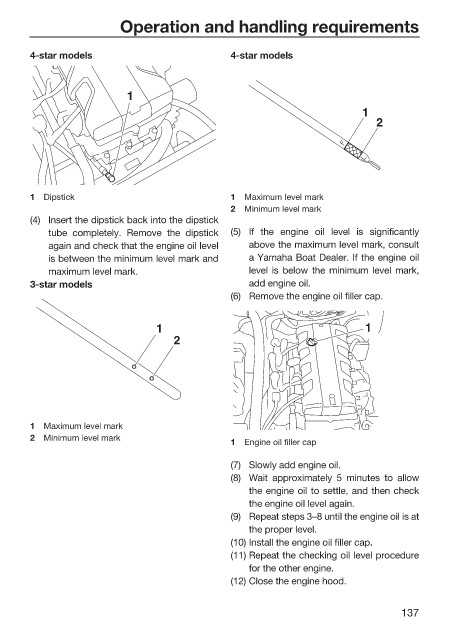

Page 145 - LIT-18626-12-95

Operation and handling requirements

4-star models 4-star models

1
1
2

1 Dipstick 1 Maximum level mark
2 Minimum level mark
(4) Insert the dipstick back into the dipstick
tube completely. Remove the dipstick (5) If the engine oil level is significantly
again and check that the engine oil level above the maximum level mark, consult
is between the minimum level mark and a Yamaha Boat Dealer. If the engine oil
maximum level mark. level is below the minimum level mark,
3-star models add engine oil.
(6) Remove the engine oil filler cap.

1 1
2

1 Maximum level mark
2 Minimum level mark
1 Engine oil filler cap
(7) Slowly add engine oil.
(8) Wait approximately 5 minutes to allow
the engine oil to settle, and then check
the engine oil level again.
(9) Repeat steps 3–8 until the engine oil is at
the proper level.
(10) Install the engine oil filler cap.
(11) Repeat the checking oil level procedure
for the other engine.
(12) Close the engine hood.

137
