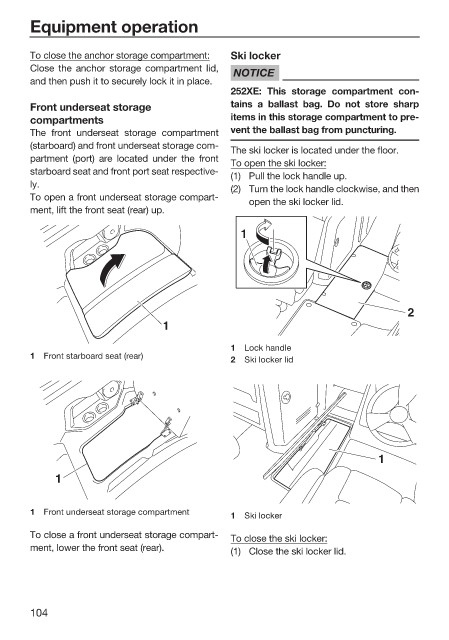

Equipment operation

To close the anchor storage compartment: Ski locker
Close the anchor storage compartment lid, NOTICE
and then push it to securely lock it in place.
252XE: This storage compartment con-
Front underseat storage tains a ballast bag. Do not store sharp
compartments items in this storage compartment to pre-
The front underseat storage compartment vent the ballast bag from puncturing.
(starboard) and front underseat storage com-
The ski locker is located under the floor.
partment (port) are located under the front
To open the ski locker:
starboard seat and front port seat respective-
(1) Pull the lock handle up.
ly.
(2) Turn the lock handle clockwise, and then
To open a front underseat storage compart-
open the ski locker lid.
ment, lift the front seat (rear) up.
1

2
1

1 Lock handle
1 Front starboard seat (rear)
2 Ski locker lid

1
1

1 Front underseat storage compartment
1 Ski locker
To close a front underseat storage compart- To close the ski locker:
ment, lower the front seat (rear). (1) Close the ski locker lid.

104
