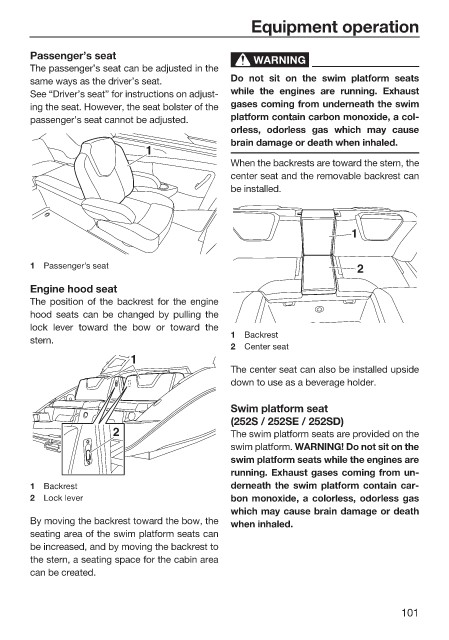

Page 109 - LIT-18626-12-95

Equipment operation

Passenger’s seat
WARNING
The passenger’s seat can be adjusted in the
same ways as the driver’s seat. Do not sit on the swim platform seats
See “Driver’s seat” for instructions on adjust- while the engines are running. Exhaust
ing the seat. However, the seat bolster of the gases coming from underneath the swim
passenger’s seat cannot be adjusted. platform contain carbon monoxide, a col-
orless, odorless gas which may cause
brain damage or death when inhaled.
1
When the backrests are toward the stern, the
center seat and the removable backrest can
be installed.

1

1 Passenger’s seat 2

Engine hood seat
The position of the backrest for the engine
hood seats can be changed by pulling the
lock lever toward the bow or toward the
1 Backrest
stern.
2 Center seat
1
The center seat can also be installed upside
down to use as a beverage holder.

Swim platform seat
(252S / 252SE / 252SD)
2 The swim platform seats are provided on the
swim platform. WARNING! Do not sit on the
swim platform seats while the engines are
running. Exhaust gases coming from un-
1 Backrest derneath the swim platform contain car-
2 Lock lever bon monoxide, a colorless, odorless gas
which may cause brain damage or death
By moving the backrest toward the bow, the when inhaled.
seating area of the swim platform seats can
be increased, and by moving the backrest to
the stern, a seating space for the cabin area
can be created.

101
