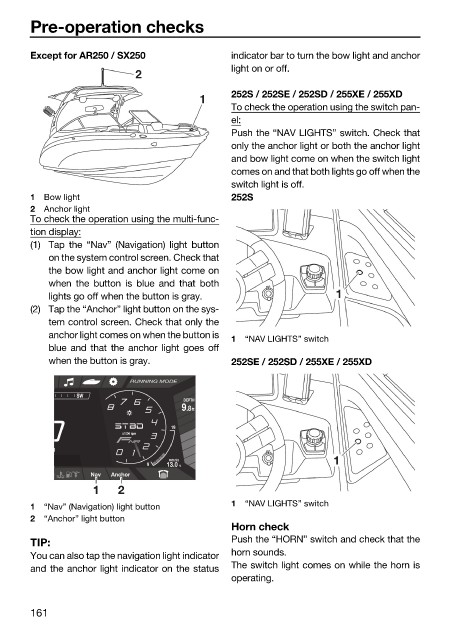

                        Pre-operation checks

                        Except for AR250 / SX250              indicator bar to turn the bow light and anchor
                                                              light on or off.
                                            2
                                                              252S / 252SE / 252SD / 255XE / 255XD
                                                        1
                                                              To check the operation using the switch pan-
                                                              el:
                                                              Push the “NAV LIGHTS” switch. Check that
                                                              only the anchor light or both the anchor light
                                                              and bow light come on when the switch light
                                                              comes on and that both lights go off when the
                                                              switch light is off.
                        1  Bow light                          252S
                        2  Anchor light
                        To check the operation using the multi-func-
                        tion display:
                        (1) Tap the “Nav” (Navigation) light button
                            on the system control screen. Check that
                            the bow light and anchor light come on
                            when the button is  blue and that both
                            lights go off when the button is gray.               1
                        (2) Tap the “Anchor” light button on the sys-
                            tem control screen. Check that only the
                            anchor light comes on when the button is  1  “NAV LIGHTS” switch
                            blue and that the anchor light goes off
                            when the button is gray.          252SE / 252SD / 255XE / 255XD
                                           RUNNING MODE
                                 SW
                                                     DEPTH
                                                     .8 9  ft
                                                  19
                                         x1000 rpm
                            H
                                                  HOUSE                          1
                                              9   13.0  V
                                   Nav  Anchor
                                    1    2
                                                              1  “NAV LIGHTS” switch
                        1  “Nav” (Navigation) light button
                        2  “Anchor” light button
                                                              Horn check
                        TIP:                                  Push the “HORN” switch and check that the
                        You can also tap the navigation light indicator  horn sounds.
                        and the anchor light indicator on the status  The switch light comes on while the horn is
                                                              operating.


                        161
