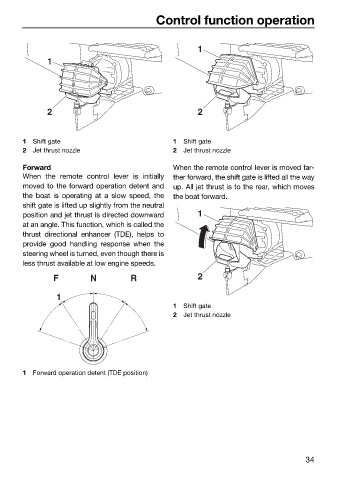

Control function operation

1
1

2 2

1 Shift gate 1 Shift gate
2 Jet thrust nozzle 2 Jet thrust nozzle

Forward When the remote control lever is moved far-
When the remote control lever is initially ther forward, the shift gate is lifted all the way
moved to the forward operation detent and up. All jet thrust is to the rear, which moves
the boat is operating at a slow speed, the the boat forward.
shift gate is lifted up slightly from the neutral
position and jet thrust is directed downward 1
at an angle. This function, which is called the
thrust directional enhancer (TDE), helps to
provide good handling response when the
steering wheel is turned, even though there is
less thrust available at low engine speeds.
F N R 2

1
1 Shift gate
2 Jet thrust nozzle

1 Forward operation detent (TDE position)

34
