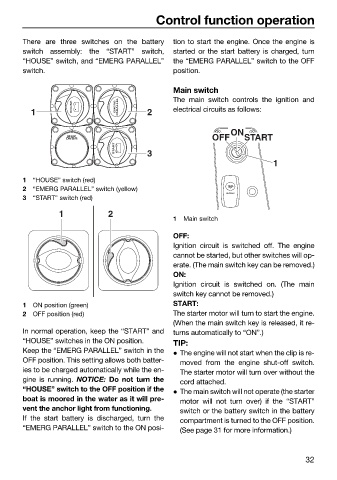

Control function operation

There are three switches on the battery tion to start the engine. Once the engine is
switch assembly: the “START” switch, started or the start battery is charged, turn
“HOUSE” switch, and “EMERG PARALLEL” the “EMERG PARALLEL” switch to the OFF
switch. position.

Main switch
The main switch controls the ignition and
1 2 electrical circuits as follows:

ON
OFF START

3
1

1 “HOUSE” switch (red)
2 “EMERG PARALLEL” switch (yellow)
BLOWER
3 “START” switch (red)
1 2
1 Main switch

OFF:
Ignition circuit is switched off. The engine
cannot be started, but other switches will op-
erate. (The main switch key can be removed.)
ON:
Ignition circuit is switched on. (The main
switch key cannot be removed.)
1 ON position (green) START:
2 OFF position (red) The starter motor will turn to start the engine.
(When the main switch key is released, it re-
In normal operation, keep the “START” and turns automatically to “ON”.)
“HOUSE” switches in the ON position. TIP:
Keep the “EMERG PARALLEL” switch in the  The engine will not start when the clip is re-
OFF position. This setting allows both batter- moved from the engine shut-off switch.
ies to be charged automatically while the en- The starter motor will turn over without the
gine is running. NOTICE: Do not turn the cord attached.
“HOUSE” switch to the OFF position if the  The main switch will not operate (the starter
boat is moored in the water as it will pre- motor will not turn over) if the “START”
vent the anchor light from functioning. switch or the battery switch in the battery
If the start battery is discharged, turn the compartment is turned to the OFF position.
“EMERG PARALLEL” switch to the ON posi- (See page 31 for more information.)

32
