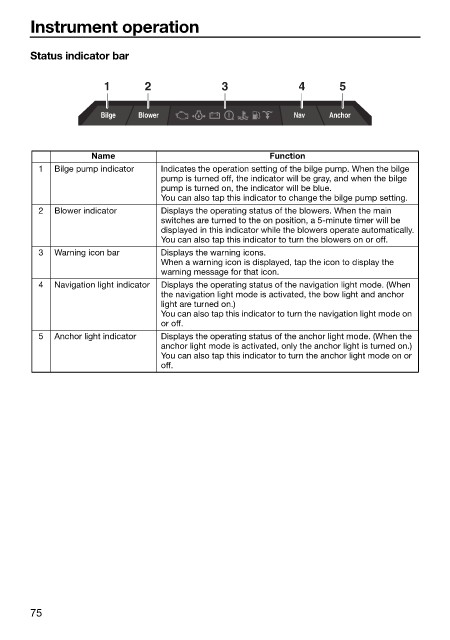

Instrument operation

Status indicator bar

1 2 3 4 5

Bilge Blower Nav Anchor

Name Function
1 Bilge pump indicator Indicates the operation setting of the bilge pump. When the bilge
pump is turned off, the indicator will be gray, and when the bilge
pump is turned on, the indicator will be blue.
You can also tap this indicator to change the bilge pump setting.
2 Blower indicator Displays the operating status of the blowers. When the main
switches are turned to the on position, a 5-minute timer will be
displayed in this indicator while the blowers operate automatically.
You can also tap this indicator to turn the blowers on or off.
3 Warning icon bar Displays the warning icons.
When a warning icon is displayed, tap the icon to display the
warning message for that icon.
4 Navigation light indicator Displays the operating status of the navigation light mode. (When
the navigation light mode is activated, the bow light and anchor
light are turned on.)
You can also tap this indicator to turn the navigation light mode on
or off.
5 Anchor light indicator Displays the operating status of the anchor light mode. (When the
anchor light mode is activated, only the anchor light is turned on.)
You can also tap this indicator to turn the anchor light mode on or
off.

75
