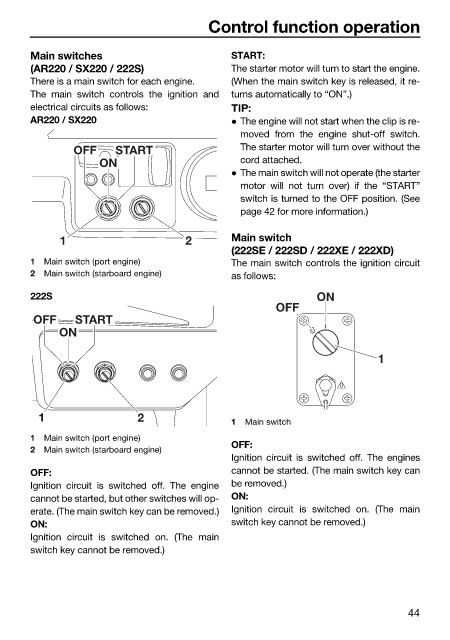

Control function operation

Main switches START:
(AR220 / SX220 / 222S) The starter motor will turn to start the engine.
There is a main switch for each engine. (When the main switch key is released, it re-
The main switch controls the ignition and turns automatically to “ON”.)
electrical circuits as follows: TIP:
AR220 / SX220  The engine will not start when the clip is re-
moved from the engine shut-off switch.
OFF START The starter motor will turn over without the
ON cord attached.
 The main switch will not operate (the starter
motor will not turn over) if the “START”
switch is turned to the OFF position. (See
page 42 for more information.)

1 2 Main switch
(222SE / 222SD / 222XE / 222XD)
1 Main switch (port engine) The main switch controls the ignition circuit
2 Main switch (starboard engine) as follows:
222S ON
OFF
OFF START
ON

1

1 2 1 Main switch
1 Main switch (port engine)
OFF:
2 Main switch (starboard engine)
Ignition circuit is switched off. The engines
OFF: cannot be started. (The main switch key can
Ignition circuit is switched off. The engine be removed.)
cannot be started, but other switches will op- ON:
erate. (The main switch key can be removed.) Ignition circuit is switched on. (The main
ON: switch key cannot be removed.)
Ignition circuit is switched on. (The main
switch key cannot be removed.)

44
