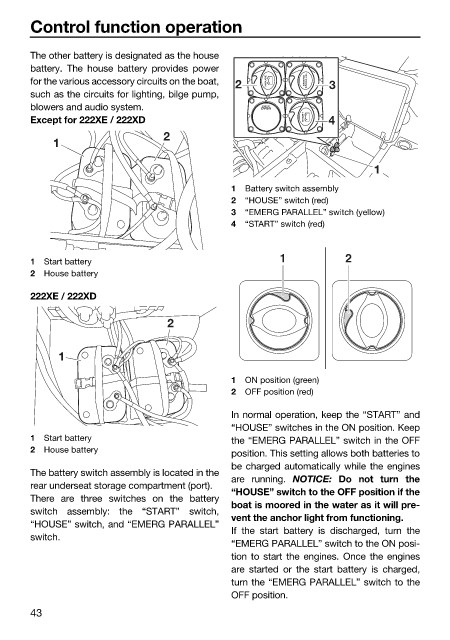

Control function operation

The other battery is designated as the house
battery. The house battery provides power
for the various accessory circuits on the boat, 2 3
such as the circuits for lighting, bilge pump,
blowers and audio system.
Except for 222XE / 222XD 4
2
1

1
1 Battery switch assembly
2 “HOUSE” switch (red)
3 “EMERG PARALLEL” switch (yellow)
4 “START” switch (red)

1 Start battery 1 2
2 House battery
222XE / 222XD

2

1

1 ON position (green)
2 OFF position (red)
In normal operation, keep the “START” and
“HOUSE” switches in the ON position. Keep
1 Start battery the “EMERG PARALLEL” switch in the OFF
2 House battery
position. This setting allows both batteries to
be charged automatically while the engines
The battery switch assembly is located in the
are running. NOTICE: Do not turn the
rear underseat storage compartment (port).
“HOUSE” switch to the OFF position if the
There are three switches on the battery
boat is moored in the water as it will pre-
switch assembly: the “START” switch,
vent the anchor light from functioning.
“HOUSE” switch, and “EMERG PARALLEL”
If the start battery is discharged, turn the
switch.
“EMERG PARALLEL” switch to the ON posi-
tion to start the engines. Once the engines
are started or the start battery is charged,
turn the “EMERG PARALLEL” switch to the
OFF position.
