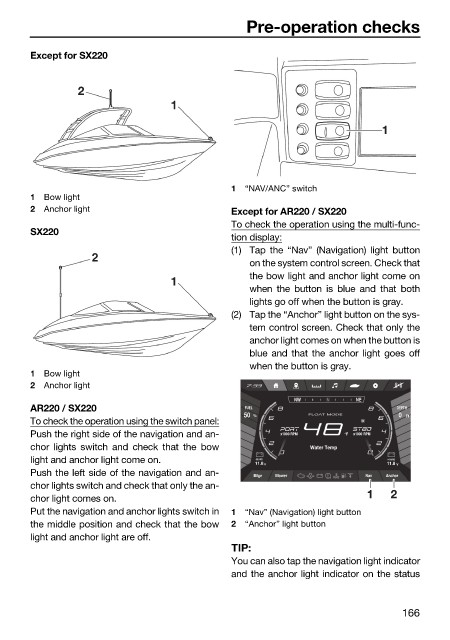

Pre-operation checks

Except for SX220

2
1

1

1 “NAV/ANC” switch
1 Bow light
2 Anchor light Except for AR220 / SX220
To check the operation using the multi-func-
SX220
tion display:
(1) Tap the “Nav” (Navigation) light button
2
on the system control screen. Check that
the bow light and anchor light come on
1
when the button is blue and that both
lights go off when the button is gray.
(2) Tap the “Anchor” light button on the sys-
tem control screen. Check that only the
anchor light comes on when the button is
blue and that the anchor light goes off
when the button is gray.
1 Bow light
2 Anchor light
NW N NE
AR220 / SX220 FUEL DEPTH
50 % FLOAT MODE 0 Ft
To check the operation using the switch panel:
Push the right side of the navigation and an- °F
chor lights switch and check that the bow Water Temp
light and anchor light come on. START HOUSE
11.8 V 11.8 V
Push the left side of the navigation and an- Bilge Blower Nav Anchor
chor lights switch and check that only the an-
1 2
chor light comes on.
Put the navigation and anchor lights switch in 1 “Nav” (Navigation) light button
the middle position and check that the bow 2 “Anchor” light button
light and anchor light are off.
TIP:
You can also tap the navigation light indicator
and the anchor light indicator on the status

166
