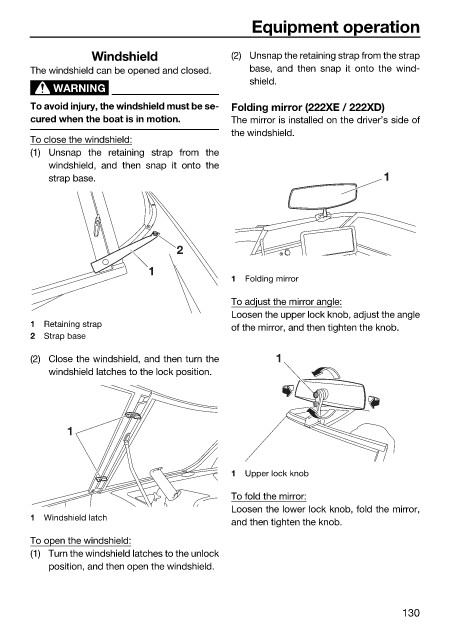

Equipment operation

Windshield (2) Unsnap the retaining strap from the strap
The windshield can be opened and closed. base, and then snap it onto the wind-
shield.
WARNING
To avoid injury, the windshield must be se- Folding mirror (222XE / 222XD)
cured when the boat is in motion. The mirror is installed on the driver’s side of
the windshield.
To close the windshield:
(1) Unsnap the retaining strap from the
windshield, and then snap it onto the
strap base. 1

2
1
1 Folding mirror

To adjust the mirror angle:
Loosen the upper lock knob, adjust the angle
1 Retaining strap
of the mirror, and then tighten the knob.
2 Strap base
(2) Close the windshield, and then turn the 1
windshield latches to the lock position.

1

1 Upper lock knob

To fold the mirror:
Loosen the lower lock knob, fold the mirror,
1 Windshield latch
and then tighten the knob.
To open the windshield:
(1) Turn the windshield latches to the unlock
position, and then open the windshield.

130
