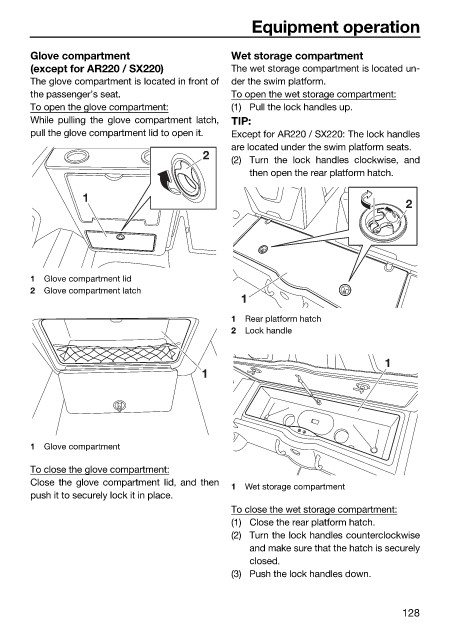

Equipment operation

Glove compartment Wet storage compartment
(except for AR220 / SX220) The wet storage compartment is located un-
The glove compartment is located in front of der the swim platform.
the passenger’s seat. To open the wet storage compartment:
To open the glove compartment: (1) Pull the lock handles up.
While pulling the glove compartment latch, TIP:
pull the glove compartment lid to open it. Except for AR220 / SX220: The lock handles
are located under the swim platform seats.
2
(2) Turn the lock handles clockwise, and
then open the rear platform hatch.

1
2

1 Glove compartment lid
2 Glove compartment latch
1
1 Rear platform hatch
2 Lock handle

1
1

1 Glove compartment

To close the glove compartment:
Close the glove compartment lid, and then
1 Wet storage compartment
push it to securely lock it in place.
To close the wet storage compartment:
(1) Close the rear platform hatch.
(2) Turn the lock handles counterclockwise
and make sure that the hatch is securely
closed.
(3) Push the lock handles down.

128
