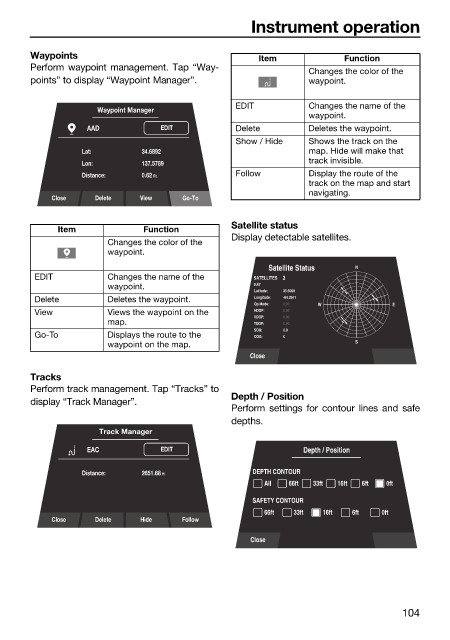

Instrument operation

Waypoints Item Function
Perform waypoint management. Tap “Way- Changes the color of the
points” to display “Waypoint Manager”. waypoint.

EDIT Changes the name of the
Waypoint Manager
waypoint.
AAD EDIT Delete Deletes the waypoint.
Show / Hide Shows the track on the
Lat: 34.6892 map. Hide will make that
track invisible.
Lon: 137.5789
Distance: 0.62 Ft. Follow Display the route of the
track on the map and start
navigating.
Close Delete View Go-To
Satellite status
Item Function
Display detectable satellites.
Changes the color of the
waypoint.
Satellite Status N
EDIT Changes the name of the SATELLITES 3
waypoint. 9:47
Latitude: 35.6060
Delete Deletes the waypoint. Longitude: -84.2541
Op Mode: 0.00 W E
View Views the waypoint on the HDOP: 0.00
VDOP: 0.00
map. TDOP: 0.00
SOG: 0.0
Go-To Displays the route to the COG: 0
waypoint on the map. S
Close
Tracks
Perform track management. Tap “Tracks” to
Depth / Position
display “Track Manager”.
Perform settings for contour lines and safe
depths.
Track Manager
EAC EDIT Depth / Position

Distance: 2651.68 ft DEPTH CONTOUR
All 66ft 33ft 16ft 6ft 0ft
SAFETY CONTOUR
66ft 33ft 16ft 6ft 0ft
Close Delete Hide Follow
Close

104
