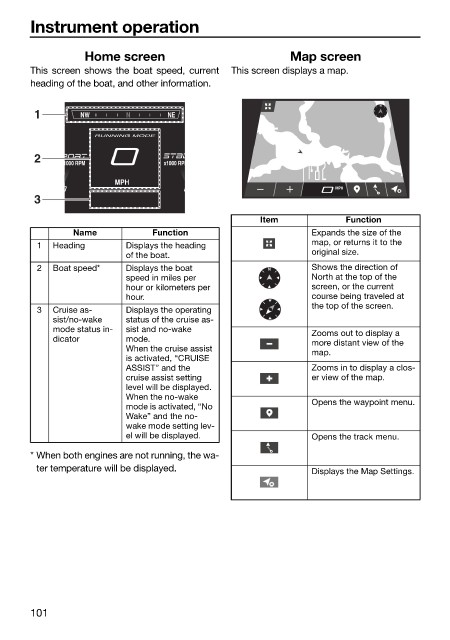

Instrument operation

Home screen Map screen
This screen shows the boat speed, current This screen displays a map.
heading of the boat, and other information.

1 NW N NE

RUNNING MODE
2

MPH
MPH
3
Item Function
Name Function Expands the size of the
1 Heading Displays the heading map, or returns it to the
of the boat. original size.
2 Boat speed* Displays the boat Shows the direction of
speed in miles per North at the top of the
hour or kilometers per screen, or the current
hour. course being traveled at
the top of the screen.
3 Cruise as- Displays the operating
sist/no-wake status of the cruise as-
mode status in- sist and no-wake Zooms out to display a
dicator mode. more distant view of the
When the cruise assist map.
is activated, “CRUISE
ASSIST” and the Zooms in to display a clos-
cruise assist setting er view of the map.
level will be displayed.
When the no-wake
mode is activated, “No Opens the waypoint menu.
Wake” and the no-
wake mode setting lev-
el will be displayed. Opens the track menu.
* When both engines are not running, the wa-
ter temperature will be displayed. Displays the Map Settings.

101
