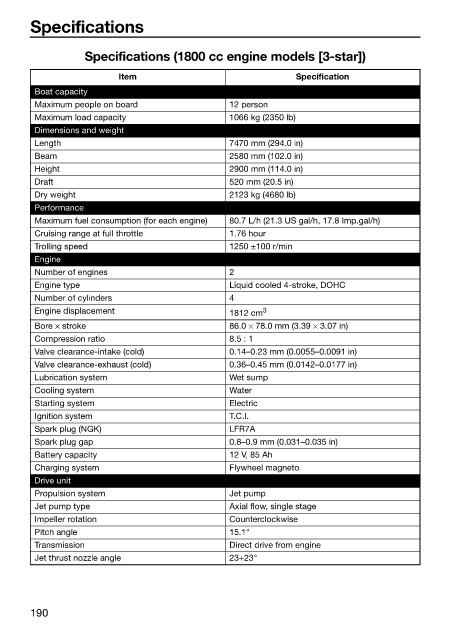

Specifications

Specifications (1800 cc engine models [3-star])

Item Specification
Boat capacity
Maximum people on board 12 person
Maximum load capacity 1066 kg (2350 lb)
Dimensions and weight
Length 7470 mm (294.0 in)
Beam 2580 mm (102.0 in)
Height 2900 mm (114.0 in)
Draft 520 mm (20.5 in)
Dry weight 2123 kg (4680 lb)
Performance
Maximum fuel consumption (for each engine) 80.7 L/h (21.3 US gal/h, 17.8 Imp.gal/h)
Cruising range at full throttle 1.76 hour
Trolling speed 1250 ±100 r/min
Engine
Number of engines 2
Engine type Liquid cooled 4-stroke, DOHC
Number of cylinders 4
Engine displacement 1812 cm 3
Bore × stroke 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio 8.5 : 1
Valve clearance-intake (cold) 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold) 0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system Wet sump
Cooling system Water
Starting system Electric
Ignition system T.C.I.
Spark plug (NGK) LFR7A
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Battery capacity 12 V, 85 Ah
Charging system Flywheel magneto
Drive unit
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise
Pitch angle 15.1°
Transmission Direct drive from engine
Jet thrust nozzle angle 23+23°

190
