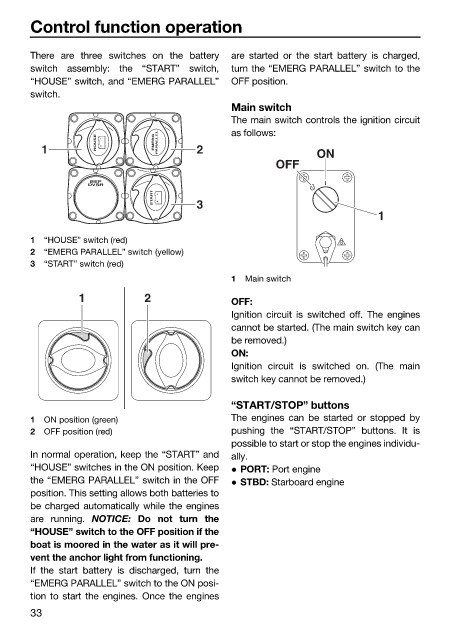

Control function operation

There are three switches on the battery are started or the start battery is charged,
switch assembly: the “START” switch, turn the “EMERG PARALLEL” switch to the
“HOUSE” switch, and “EMERG PARALLEL” OFF position.
switch.
Main switch
The main switch controls the ignition circuit
as follows:
1 2 ON
OFF

3
1

1 “HOUSE” switch (red)
2 “EMERG PARALLEL” switch (yellow)
3 “START” switch (red)
1 Main switch

1 2 OFF:
Ignition circuit is switched off. The engines
cannot be started. (The main switch key can
be removed.)
ON:
Ignition circuit is switched on. (The main
switch key cannot be removed.)

“START/STOP” buttons
1 ON position (green) The engines can be started or stopped by
2 OFF position (red) pushing the “START/STOP” buttons. It is
possible to start or stop the engines individu-
In normal operation, keep the “START” and ally.
“HOUSE” switches in the ON position. Keep  PORT: Port engine
the “EMERG PARALLEL” switch in the OFF  STBD: Starboard engine
position. This setting allows both batteries to
be charged automatically while the engines
are running. NOTICE: Do not turn the
“HOUSE” switch to the OFF position if the
boat is moored in the water as it will pre-
vent the anchor light from functioning.
If the start battery is discharged, turn the
“EMERG PARALLEL” switch to the ON posi-
tion to start the engines. Once the engines
