                                                                                Description

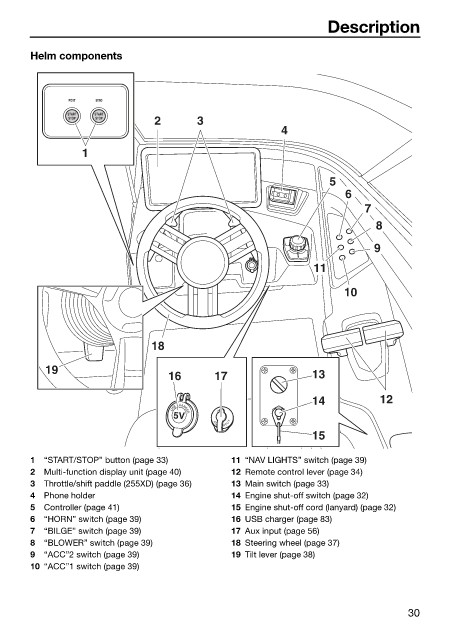

                        Helm components






                                               2       3
                                                                       4

                                  1

                                                                                5
                                                                                   6
                                                                                       7
                                                                                         8

                                                                                        9
                                                                             11

                                                                                   10




                                               18

                           19
                                                  16       17                13

                                                                             14          12
                                                   5V

                                                                             15
                        1  “START/STOP” button (page 33)      11 “NAV LIGHTS” switch (page 39)
                        2  Multi-function display unit (page 40)  12 Remote control lever (page 34)
                        3  Throttle/shift paddle (255XD) (page 36)  13 Main switch (page 33)
                        4  Phone holder                       14 Engine shut-off switch (page 32)
                        5  Controller (page 41)               15 Engine shut-off cord (lanyard) (page 32)
                        6  “HORN” switch (page 39)            16 USB charger (page 83)
                        7  “BILGE” switch (page 39)           17 Aux input (page 56)
                        8  “BLOWER” switch (page 39)          18 Steering wheel (page 37)
                        9  “ACC”2 switch (page 39)            19 Tilt lever (page 38)
                        10 “ACC”1 switch (page 39)
