Description

255 FSH SPORT E

1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAV/ANC CTSY MAP SPREADER LIVEWELL UNDERWATER ACC 1 ACC 2 FORWARD AFT RAW WATER FRESHWATER BILGE HORN
LIGHTS LIGHTS LIGHTS LIGHTS LIGHTS LIVEWELL LIVEWELL WASHDOWN WASHDOWN

BLOWER 15

16

17

18
19
20

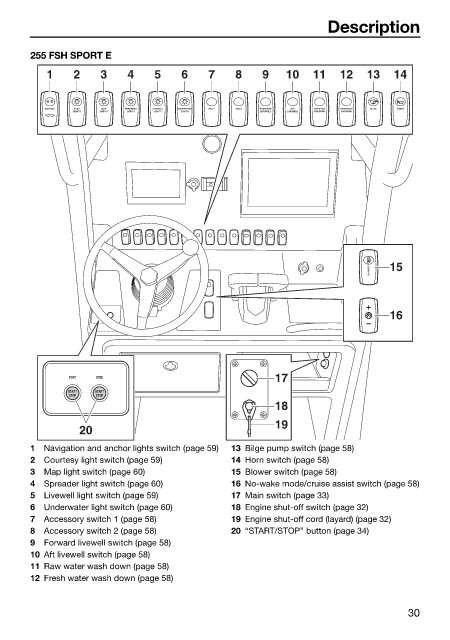

1 Navigation and anchor lights switch (page 59) 13 Bilge pump switch (page 58)
2 Courtesy light switch (page 59) 14 Horn switch (page 58)
3 Map light switch (page 60) 15 Blower switch (page 58)
4 Spreader light switch (page 60) 16 No-wake mode/cruise assist switch (page 58)
5 Livewell light switch (page 59) 17 Main switch (page 33)
6 Underwater light switch (page 60) 18 Engine shut-off switch (page 32)
7 Accessory switch 1 (page 58) 19 Engine shut-off cord (layard) (page 32)
8 Accessory switch 2 (page 58) 20 “START/STOP” button (page 34)
9 Forward livewell switch (page 58)
10 Aft livewell switch (page 58)
11 Raw water wash down (page 58)
12 Fresh water wash down (page 58)
