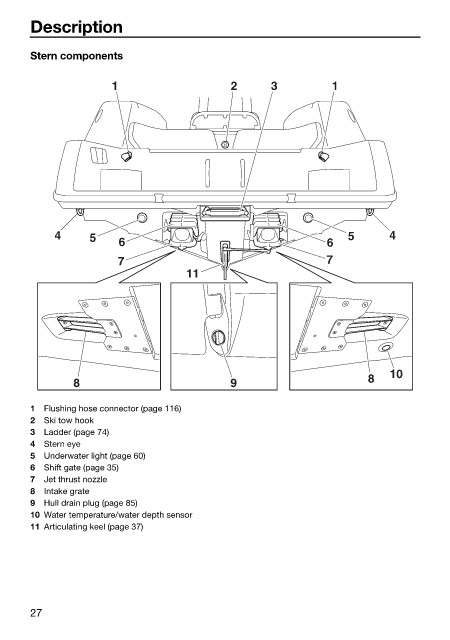

                        Description

                        Stern components


                                       1                      2      3          1















                             4     5     6                                     6   5       4

                                         7                                     7
                                                     11










                                8                            9                         8   10

                        1  Flushing hose connector (page 116)
                        2  Ski tow hook
                        3  Ladder (page 74)
                        4  Stern eye
                        5  Underwater light (page 60)
                        6  Shift gate (page 35)
                        7  Jet thrust nozzle
                        8  Intake grate
                        9  Hull drain plug (page 85)
                        10 Water temperature/water depth sensor
                        11 Articulating keel (page 37)
