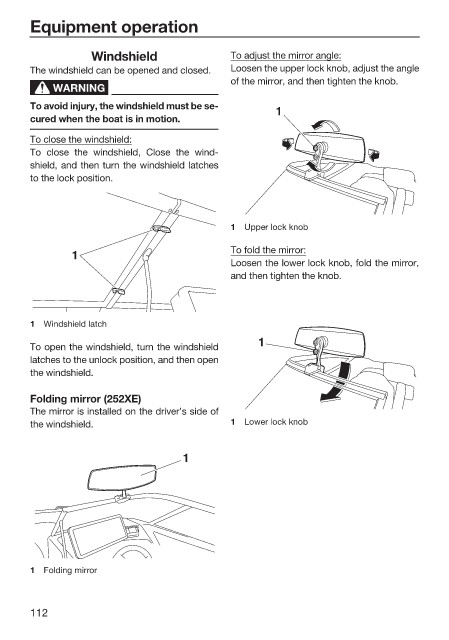

Equipment operation

Windshield To adjust the mirror angle:
The windshield can be opened and closed. Loosen the upper lock knob, adjust the angle
of the mirror, and then tighten the knob.
WARNING
To avoid injury, the windshield must be se-
1
cured when the boat is in motion.
To close the windshield:
To close the windshield, Close the wind-
shield, and then turn the windshield latches
to the lock position.

1 Upper lock knob

To fold the mirror:
1
Loosen the lower lock knob, fold the mirror,
and then tighten the knob.

1 Windshield latch
1
To open the windshield, turn the windshield
latches to the unlock position, and then open
the windshield.

Folding mirror (252XE)
The mirror is installed on the driver’s side of
the windshield. 1 Lower lock knob

1

1 Folding mirror

112
