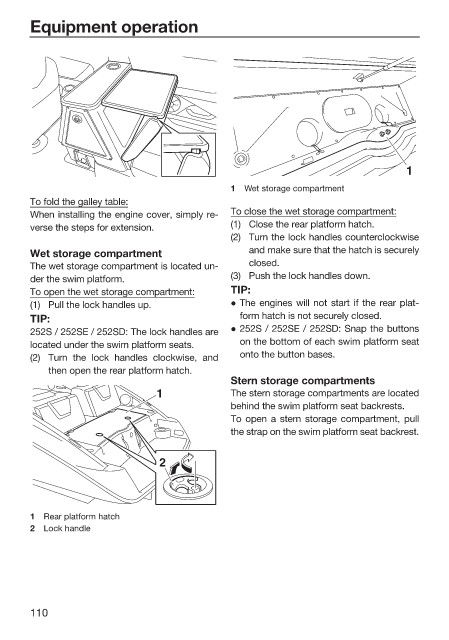

Equipment operation

1

1 Wet storage compartment
To fold the galley table:
When installing the engine cover, simply re- To close the wet storage compartment:
verse the steps for extension. (1) Close the rear platform hatch.
(2) Turn the lock handles counterclockwise
Wet storage compartment and make sure that the hatch is securely
The wet storage compartment is located un- closed.
der the swim platform. (3) Push the lock handles down.
To open the wet storage compartment: TIP:
(1) Pull the lock handles up. z The engines will not start if the rear plat-
TIP: form hatch is not securely closed.
252S / 252SE / 252SD: The lock handles are z 252S / 252SE / 252SD: Snap the buttons
located under the swim platform seats. on the bottom of each swim platform seat
(2) Turn the lock handles clockwise, and onto the button bases.
then open the rear platform hatch.
Stern storage compartments
1 The stern storage compartments are located
behind the swim platform seat backrests.
To open a stern storage compartment, pull
the strap on the swim platform seat backrest.

2

1 Rear platform hatch
2 Lock handle

110
